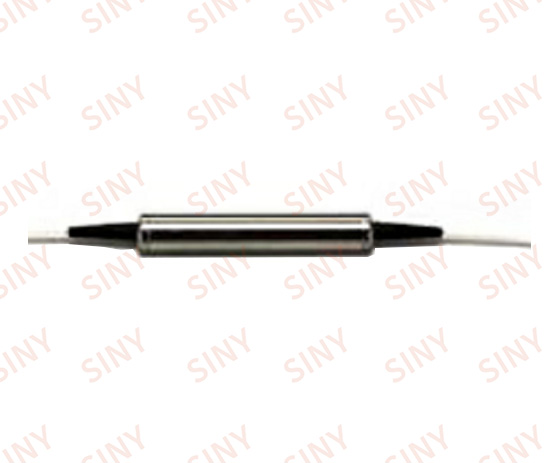

High Isolation & Low Insertion Loss
High Extinction Ratio
High Stability and Reliability
| Parameter | Specification | |||||
| Center Wavelength (nm) | 1310+/-20nm; 1550+/-20nm; 1590+/-20nm | |||||
| Single/Dual Stage | Single Stage P Grade |
Single Stage A Grade |
Dual Stage P Grade |
Dual Stage A Grade |
||
| Isolation (dB) | (at λc) 1 | Min | 42 | 40 | 58 | 55 |
| (at λc±20nm) 2 | Min | 28 | 26 | 48 | 45 | |
| Insertion Loss (dB) | (at λc) 1 | Typ | 0.35 | 0.4 | 0.5 | 0.6 |
| (at λc±20nm) 2 | Max | 0.5 | 0.7 | 0.6 | 0.9 | |
| Extinction Ratio（dB） | 23°C | Min | 23 | 20 | 20 | 18 |
| Return Loss (Input/Output) (dB) | Min | 60/55 | 60/55 | 60/55 | 60/55 | |
| PDL (dB) | Max | 0.05 | 0.1 | 0.1 | 0.15 | |
| PMD (ps) | Max | 0.2 | 0.25 | 0.05 | 0.07 | |
| Operating Temperature(°C) | -5~+70 | |||||
| Storage Temperature (°C) | -40~+85 | |||||
| Maximum Power Handling (mW) | 500 | |||||
| FiberType | Panda 250um or 400um | |||||
| Package Dimension (∅*L) (mm) | 5.5*L35 | |||||
| 1. Tested at 23°C, all SOP, and values referenced without connector. | ||||||
| 2. Tested at 0~70°C, all SOP, and values referenced without connector. | ||||||
| * For devices with connetors， IL will +0.3dB, RL -5dB，ER-2dB | ||||||
